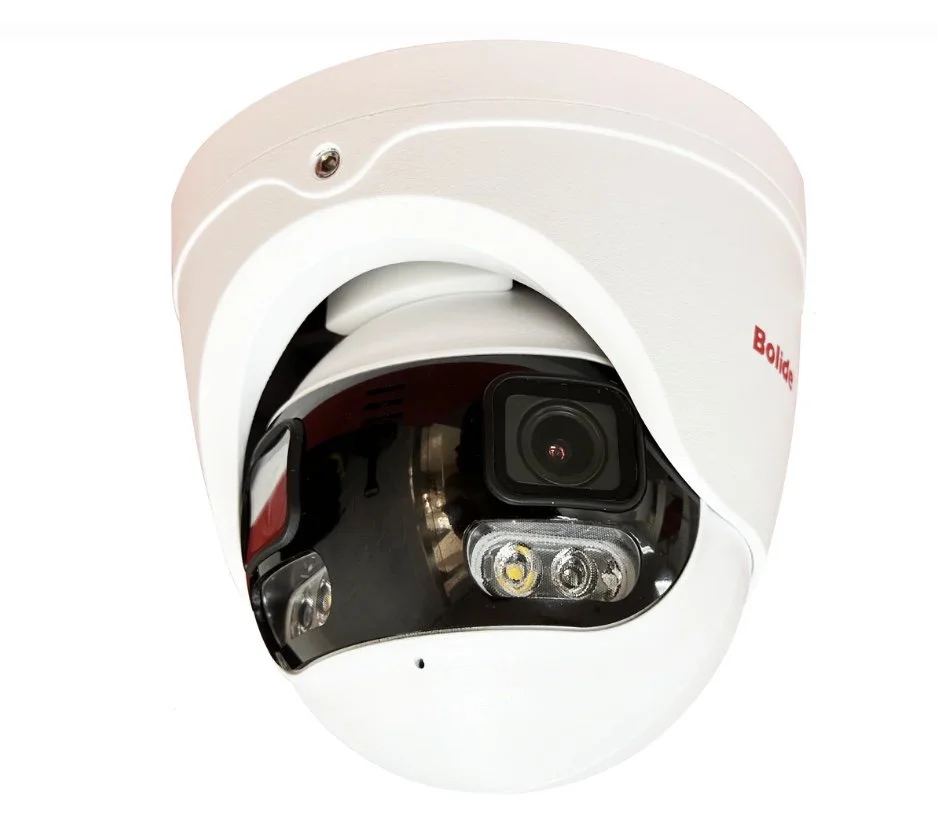

Dual Sensor 180 Degree Panoramic Turret Camera | BN9109-PN-DUAL
Specifications
Mechanical SpecificationsImage Sensor2x 1/2.8"Progressive CMOSMin. Illumination
Color: 0.001Lux@F1.2
B/W: 0 Lux with IR On
Shutter Speed1/5 s- 1/100,000s~1sLens Type2.8mm @ F1.0Lens MountM12Day and NightIR Cut Filter with Auto SwitchDynamic Range120dB Super WDRDigital Noise Reduction2D / 3D DNRCompressionVideo CompressionH.265+/H.265/H.264/MJPEGImage ResolutionUp to 5120 (H) × 1440 (V)Video Bit Rate8Kbps-16384MbpsImageResolution
Main Stream: 60/50Hz @ 15FPS
5120 x 1440
4608 x 1296
4096 x 1152
3840 x 1080
3072 x 864
Sub Stream: 60/50Hz @ 15FPS
2048 x 576
1536 x 432
1024 x 288
InterfaceSystem CompatibilityONVIF Profile G, Q, S, T, APIInterface1 RJ45 10M / 100M Ethernet InterfaceIR DistanceIR Up to 98 ftPOEBuilt-In POEElectricalPower Supply12 VDC ± 10%, POE (802.3af)Power Consumption
13.49W Max
Operating Temperature-40 °F- 140 °F Humidity 95% or less (non-condensing)PhysicalDimensions5.31 "x 4.42"Net Weight1.69 lbs.Weather RatingIP67 Rated, IK10 RatedIntelligence FeaturesBuilt-in Analytics
Face Recognition
License Plate Recognition
Human and Vehicle Detection
Line Cross Detection
Human Foot Traffic Heat Map
Rare Sound Detection
Stationary Object Detection
