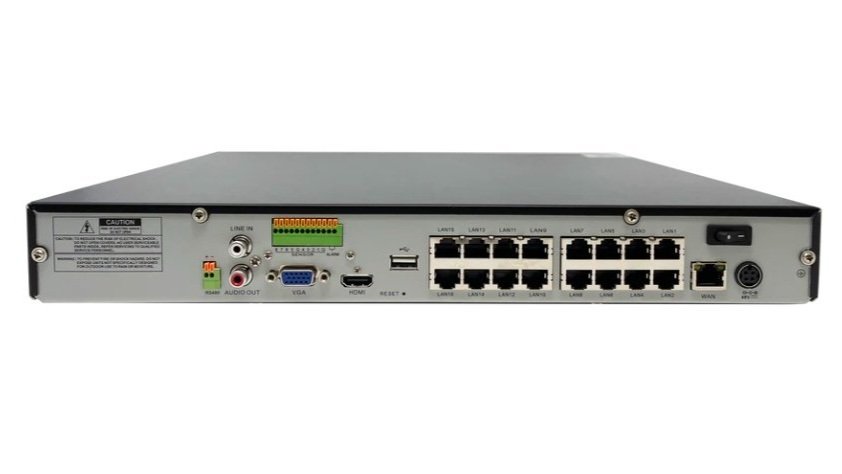

16-Channel with 16-Port POE, iPac AI Enabled | BN-NVR/16NX-S/NDAA
Specifications
SpecificationRecording Bandwidth112Mbps ThroughputRecording Resolution8MP, 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P)Display Split1 / 4 / 9 / CustomFrame Rate4K: 45FPS
4MP: 90FPS
2MP: 180FPSVideo AnalyticsPerimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Foot Traffic Heat Map
iPac AI: Face Recognition, Human / Vehicle detectionOutput Interface1 HDMI, 1 VGADisplay Resolution1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 1680*1050, 1600*1200, 1900*1200, 2560*1440, 3840*2160Line inYesAlarm Input/out8CH Input / 1CH OutputAudio1-Channel Audio In / 1-Channel Audio OutEthernetRJ-45 port (1000M)Mobile Device AccessBolide Quick Connect for iOS and AndroidInternal HDD2 SATA HDD Up to 12TB Per Bay ( 24TB Total )USB2x 2.0 USBONVIFONVIF Profile S Version 2.6POE16 PoE Ports, single port up to 802.3at (30W)Power SupplyDC48V, PoE Switch 48VDimension (W×D×H)14.88” x 12.47” x 1.88”
